产品分析

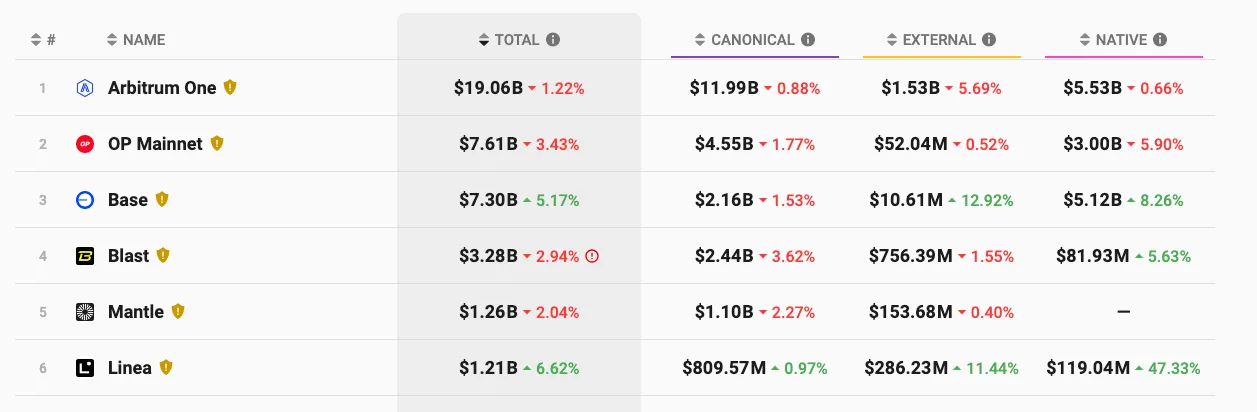

TVL

其TVL列表分为3类

CBV - Canonically Bridged Value 锁定在以太坊上，跨到L2
EBV - Externally Bridged Value 锁定在其他链上，跨到L2
NMV - Natively Minted Value 直接在L2上mint的

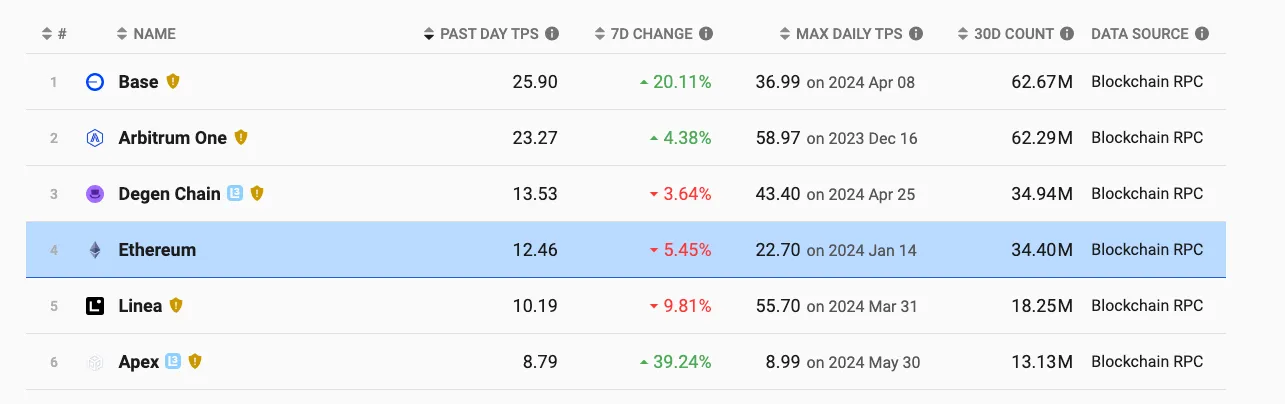

Activity

主要展示昨日TPS，7日环比变化，最高记录，30日总量

L2BEAT实现

TVL

其实现入口位于l2beat/packages/backend/src/modules/tvl/api/TvlRouter.ts /api/tvl接口

取数据:

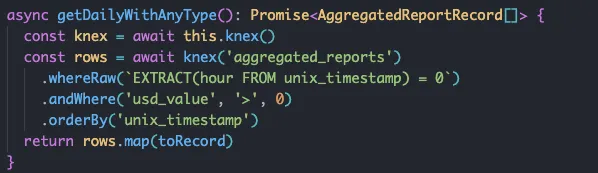

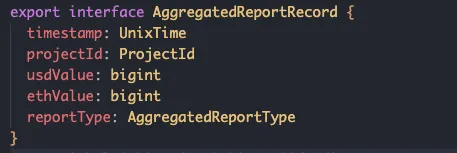

其实现方式为从aggregated_reports表中直接查询数据，根据sql判断，该表存的是每小时聚合的数据，字段为：

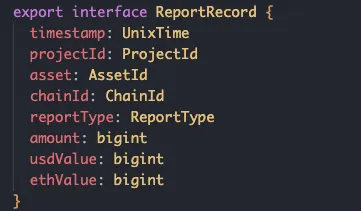

aggregated_reports表的数据源是report表，每小时从report表中查询数据，汇总到aggregated_reports中。report表字段为：

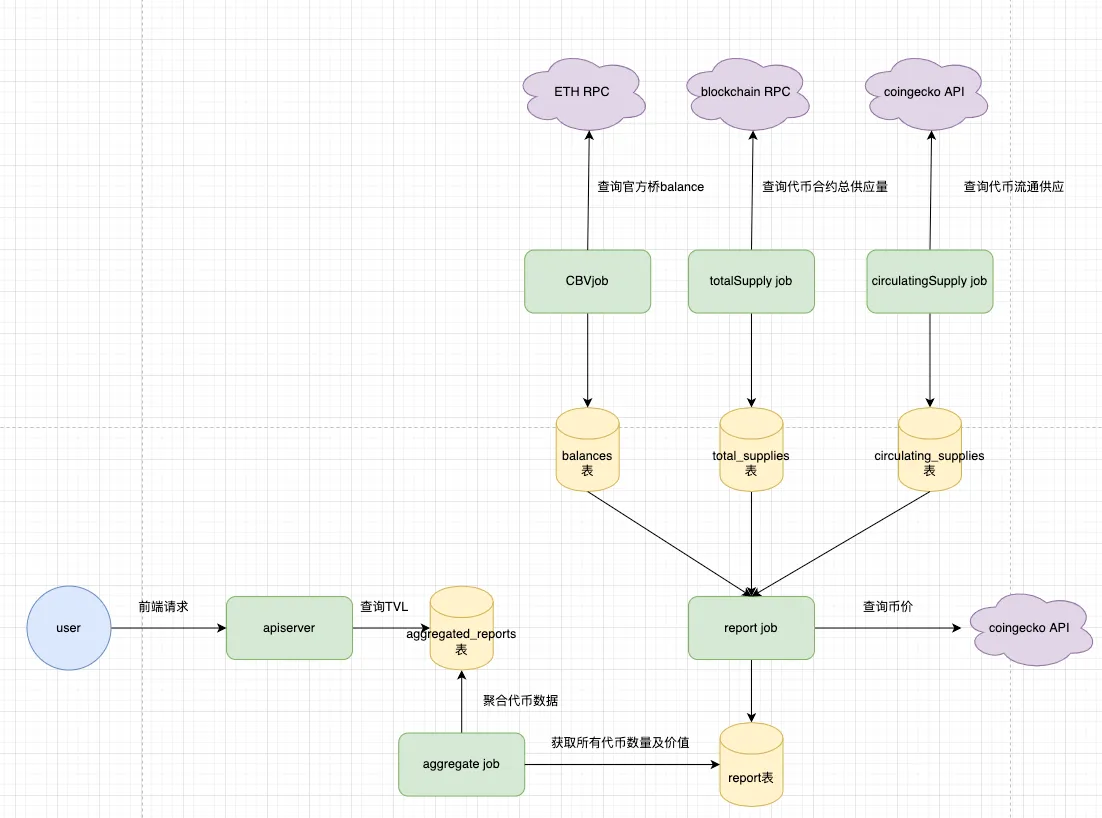

大致流程：

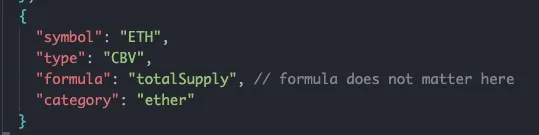

在token.jsonc配置文件中，为每条链配置token列表，

如果是代币类型是EBV，则计算方式为totalsupply，查询该代币在当前链上合约的totalsupply，存储在total_supplies表；

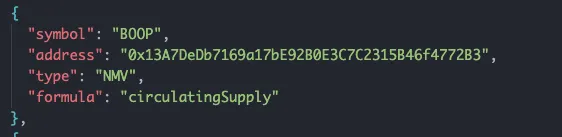

如果是NMV，则计算方式为circulatingSupply，从coingecko的api查询流通供应，存储在circulating_supplies表；

如果是CBV，则计算方式为查询以太坊链上的官方桥合约对应代币的balance，存储在balances表中。

还有一个定时任务从total_supplies，circulating_supplies，balances三张表中查询数据，再从coingecko的api获取币价，存储到report表中。

Activity

其实现入口位于l2beat/packages/backend/src/modules/tvl/api/ActivityRouter.ts /api/activity接口

取数据：

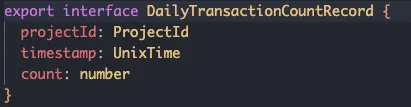

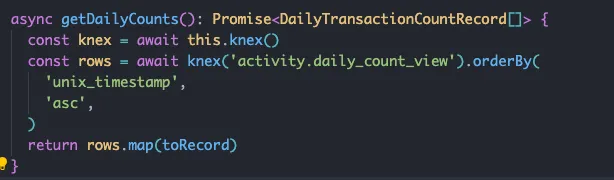

其实现方式为从activity.daily_count_view表中直接查询数据，但未看到写入代码，根据表名推测应该是某个表的视图，根据sql判断，该视图为每天的tps数据。

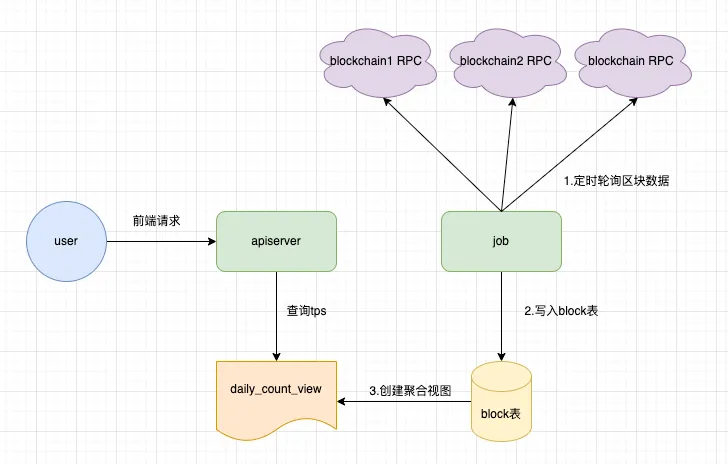

进一步阅读代码，其实现逻辑为调用项目rpc，轮询最新区块，在packages/backend/src/modules/activity/SequenceProcessor.ts process函数中，把每个区块的交易数写入block表，其字段为：

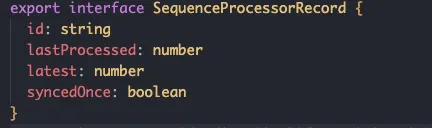

随后写入状态表sequence_processor，该表记录block表同步的最新区块状态：

daily_count_view视图由block表创建。

BTCLayer2技术方案

tvl直接使用defillama的API，每日请求一次，缓存至内存。

tps采用L2beat的实现思路，创建定时任务，使用eth_getBlock轮询区块，计算出TPS，但不落数据库，直接缓存至内存中。如果项目方不支持eth jsonrpc的api，需要单独开发进行接入。

chain	rpc
Merlin Chain	https://rpc.merlinchain.io
Rootstock	https://public-node.rsk.co https://rpc.rootstock.io/
Stacks	不支持eth_getBlock
Bitlayer	https://rpc.bitlayer.org https://rpc.bitlayer-rpc.com https://rpc.ankr.com/bitlayer
B^Square	https://rpc.bsquared.network https://b2-mainnet.alt.technology
BEVM	https://rpc-mainnet-1.bevm.io https://rpc-mainnet-2.bevm.io
BOB	https://rpc.gobob.xyz/

L2BEAT源码部署

tvl模块

代码目录l2beat/backend

建库：

docker run -d --name=l2beat_postgres -p 5432:5432 -e POSTGRES_PASSWORD=password postgres:14
docker exec -it l2beat_postgres psql -U postgres -c 'CREATE DATABASE l2beat_local'
docker exec -it l2beat_postgres psql -U postgres -c 'CREATE DATABASE l2beat_test'

创建环境变量.env文件(打开arbitrum eth的tvl统计功能)

LOCAL_DB_URL=postgresql://postgres:123456@localhost:5432/l2beat_local
TEST_DB_URL=postgresql://postgres:123456@localhost:5432/l2beat_test
FEATURES=tvl,!tvl.*,tvl.arbitrum,tvl.ethereum,status

ARBITRUM_RPC_URL=https://arb-mainnet.g.alchemy.com/v2/xxx
ARBITRUM_ETHERSCAN_API_KEY=xxx

ETHEREUM_RPC_URL=https://eth-mainnet.g.alchemy.com/v2/xxx
ETHEREUM_ETHERSCAN_API_KEY=xxx

COINGECKO_API_KEY=xxx

配置目录l2beat/config

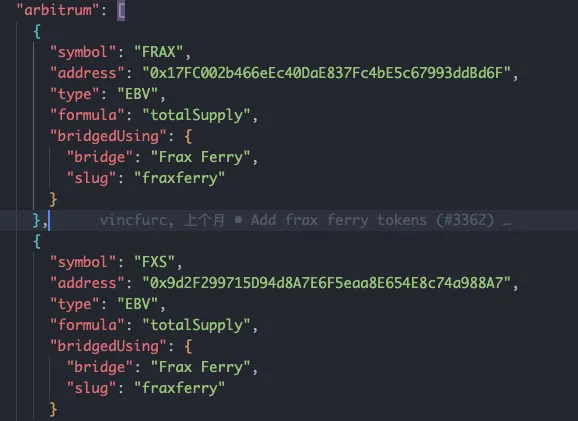

配置tokens.jsonc文件

{

  "arbitrum": [
    {
      "symbol": "FRAX",
      "address": "0x17FC002b466eEc40DaE837Fc4bE5c67993ddBd6F",
      "type": "EBV",
      "formula": "totalSupply",
      "bridgedUsing": {
        "bridge": "Frax Ferry",
        "slug": "fraxferry"
      }
    },
    {
      "symbol": "FXS",
      "address": "0x9d2F299715D94d8A7E6F5eaa8E654E8c74a988A7",
      "type": "EBV",
      "formula": "totalSupply",
      "bridgedUsing": {
        "bridge": "Frax Ferry",
        "slug": "fraxferry"
      }
    },
    ]
}

运行yarn tokens,生成generated.json文件

{
  "comment": "This file was autogenerated. Please do not edit it manually.",
  "tokens": [
    {
      "id": "zrx-0x-protocol-token",
      "name": "0x Protocol Token",
      "coingeckoId": "0x",
      "address": "0xE41d2489571d322189246DaFA5ebDe1F4699F498",
      "symbol": "ZRX",
      "decimals": 18,
      "deploymentTimestamp": 1502476756,
      "coingeckoListingTimestamp": 1573689600,
      "category": "other",
      "iconUrl": "https://assets.coingecko.com/coins/images/863/large/0x.png?1696501996",
      "chainId": 1,
      "type": "CBV",
      "formula": "locked"
    },
    {
      "id": "arbitrum:frax-frax",
      "name": "Frax",
      "coingeckoId": "frax",
      "address": "0x17FC002b466eEc40DaE837Fc4bE5c67993ddBd6F",
      "symbol": "FRAX",
      "decimals": 18,
      "deploymentTimestamp": 1632766868,
      "coingeckoListingTimestamp": 1718507527,
      "category": "other",
      "iconUrl": "https://coin-images.coingecko.com/coins/images/13422/large/FRAX_icon.png?1696513182",
      "chainId": 42161,
      "type": "EBV",
      "formula": "totalSupply",
      "bridgedUsing": {
        "bridge": "Frax Ferry",
        "slug": "fraxferry"
      }
    },
    {
      "id": "arbitrum:frxeth-frax-ether",
      "name": "Frax Ether",
      "coingeckoId": "frax-ether",
      "address": "0x178412e79c25968a32e89b11f63B33F733770c2A",
      "symbol": "frxETH",
      "decimals": 18,
      "deploymentTimestamp": 1673211956,
      "coingeckoListingTimestamp": 1718511102,
      "category": "other",
      "iconUrl": "https://coin-images.coingecko.com/coins/images/28284/large/frxETH_icon.png?1696527284",
      "chainId": 42161,
      "type": "EBV",
      "formula": "totalSupply",
      "bridgedUsing": {
        "bridge": "Frax Ferry",
        "slug": "fraxferry"
      }
    },
    {
      "id": "arbitrum:fpi-frax-price-index",
      "name": "Frax Price Index",
      "coingeckoId": "frax-price-index",
      "address": "0x1B01514A2B3CdEf16fD3c680a818A0Ab97Da8a09",
      "symbol": "FPI",
      "decimals": 18,
      "deploymentTimestamp": 1677013204,
      "coingeckoListingTimestamp": 1718514309,
      "category": "other",
      "iconUrl": "https://coin-images.coingecko.com/coins/images/24945/large/FPI_icon.png?1696524100",
      "chainId": 42161,
      "type": "EBV",
      "formula": "totalSupply",
      "bridgedUsing": {
        "bridge": "Frax Ferry",
        "slug": "fraxferry"
      }
    },
    {
      "id": "arbitrum:fpis-frax-price-index-share",
      "name": "Frax Price Index Share",
      "coingeckoId": "frax-price-index-share",
      "address": "0x3405E88af759992937b84E58F2Fe691EF0EeA320",
      "symbol": "FPIS",
      "decimals": 18,
      "deploymentTimestamp": 1677013206,
      "coingeckoListingTimestamp": 1718510810,
      "category": "other",
      "iconUrl": "https://coin-images.coingecko.com/coins/images/24944/large/FPIS_icon.png?1696524099",
      "chainId": 42161,
      "type": "EBV",
      "formula": "totalSupply",
      "bridgedUsing": {
        "bridge": "Frax Ferry",
        "slug": "fraxferry"
      }
    },
    {
      "id": "arbitrum:fxs-frax-share",
      "name": "Frax Share",
      "coingeckoId": "frax-share",
      "address": "0x9d2F299715D94d8A7E6F5eaa8E654E8c74a988A7",
      "symbol": "FXS",
      "decimals": 18,
      "deploymentTimestamp": 1632766868,
      "coingeckoListingTimestamp": 1718510434,
      "category": "other",
      "iconUrl": "https://coin-images.coingecko.com/coins/images/13423/large/Frax_Shares_icon.png?1696513183",
      "chainId": 42161,
      "type": "EBV",
      "formula": "totalSupply",
      "bridgedUsing": {
        "bridge": "Frax Ferry",
        "slug": "fraxferry"
      }
    },
    {
      "id": "arbitrum:sfrxeth-staked-frax-ether",
      "name": "Staked Frax Ether",
      "coingeckoId": "staked-frax-ether",
      "address": "0x95aB45875cFFdba1E5f451B950bC2E42c0053f39",
      "symbol": "sfrxETH",
      "decimals": 18,
      "deploymentTimestamp": 1673211957,
      "coingeckoListingTimestamp": 1718510623,
      "category": "other",
      "iconUrl": "https://coin-images.coingecko.com/coins/images/28285/large/sfrxETH_icon.png?1696527285",
      "chainId": 42161,
      "type": "EBV",
      "formula": "totalSupply",
      "bridgedUsing": {
        "bridge": "Frax Ferry",
        "slug": "fraxferry"
      }
    }
  ]
}

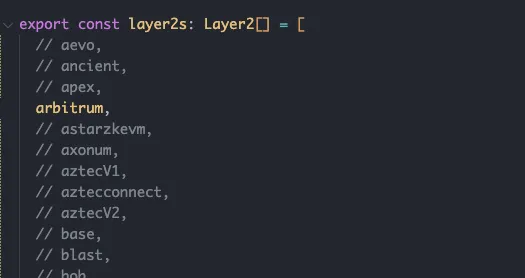

在config的project目录下配置layer2s,bridge,layer3，移除不需要的链

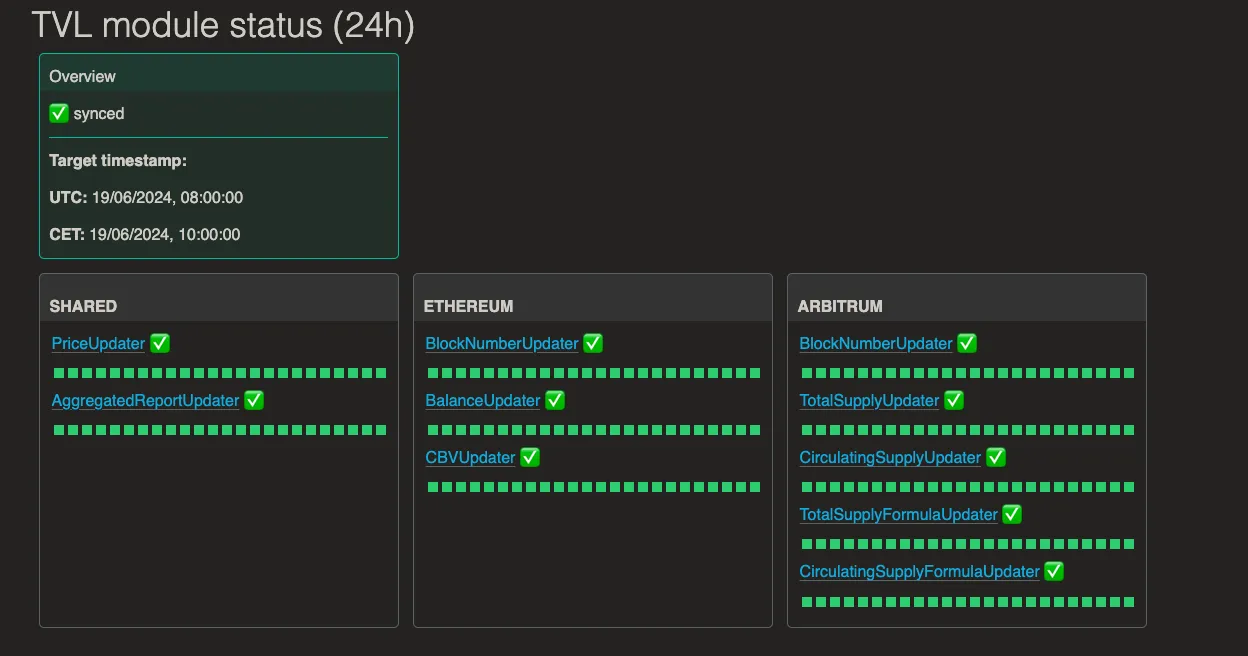

项目运行

yarn start:dev

访问http://localhost:3000 /api/tvl/aggregate?projectSlugs=arbitrum

运行过程中可能出现的问题：

由于网络问题，alchemy请求失败，可修改share文件夹下的httpclient.ts文件，使用本地代理

import fetch, { RequestInit, Response } from 'node-fetch'
import {HttpsProxyAgent} from 'https-proxy-agent';

export class HttpClient {
  private readonly agent!: HttpsProxyAgent<string>;
  constructor(private readonly defaultTimeoutMs = 10_000) {
    this.agent = new HttpsProxyAgent("http://localhost:7890");
  }

  fetch(url: string, init?: RequestInit): Promise<Response> {
    const requestInit: RequestInit = {
      ...init,
      // 设置代理代理（如果存在）
      agent: this.agent ?? init?.agent,
      // 设置超时时间
      timeout: (init && 'timeout' in init ? init.timeout : this.defaultTimeoutMs),
    };

    return fetch(url, requestInit);
  }
}

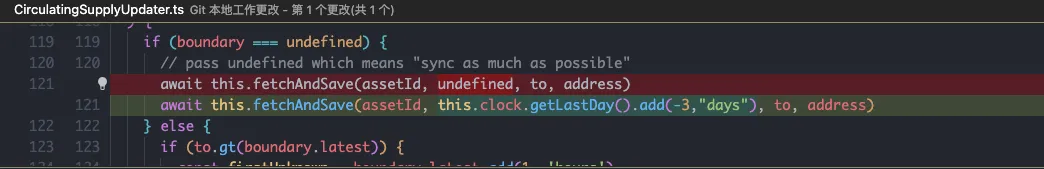

COINGECKO的api请求报错，demokey无法获取365日之前的数据，修改请求开始时间

activity模块

features增加activity开关，必须配置STARKEX_API_KEY，可随意填写

FEATURES=tvl,!tvl.*,tvl.arbitrum,tvl.ethereum,status,activity,tvlCleaner

STARKEX_API_KEY=xxx

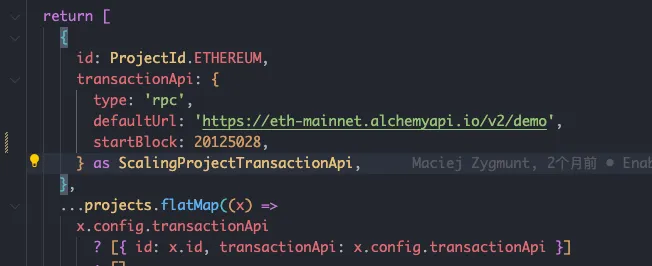

packages/backend/src/config/features/activity.ts配置eth起始区块

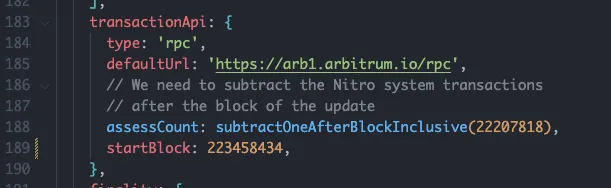

packages/config/src/projects/layer2s/arbitrum.ts配置arb起始区块
