Deep Dive into Zcash

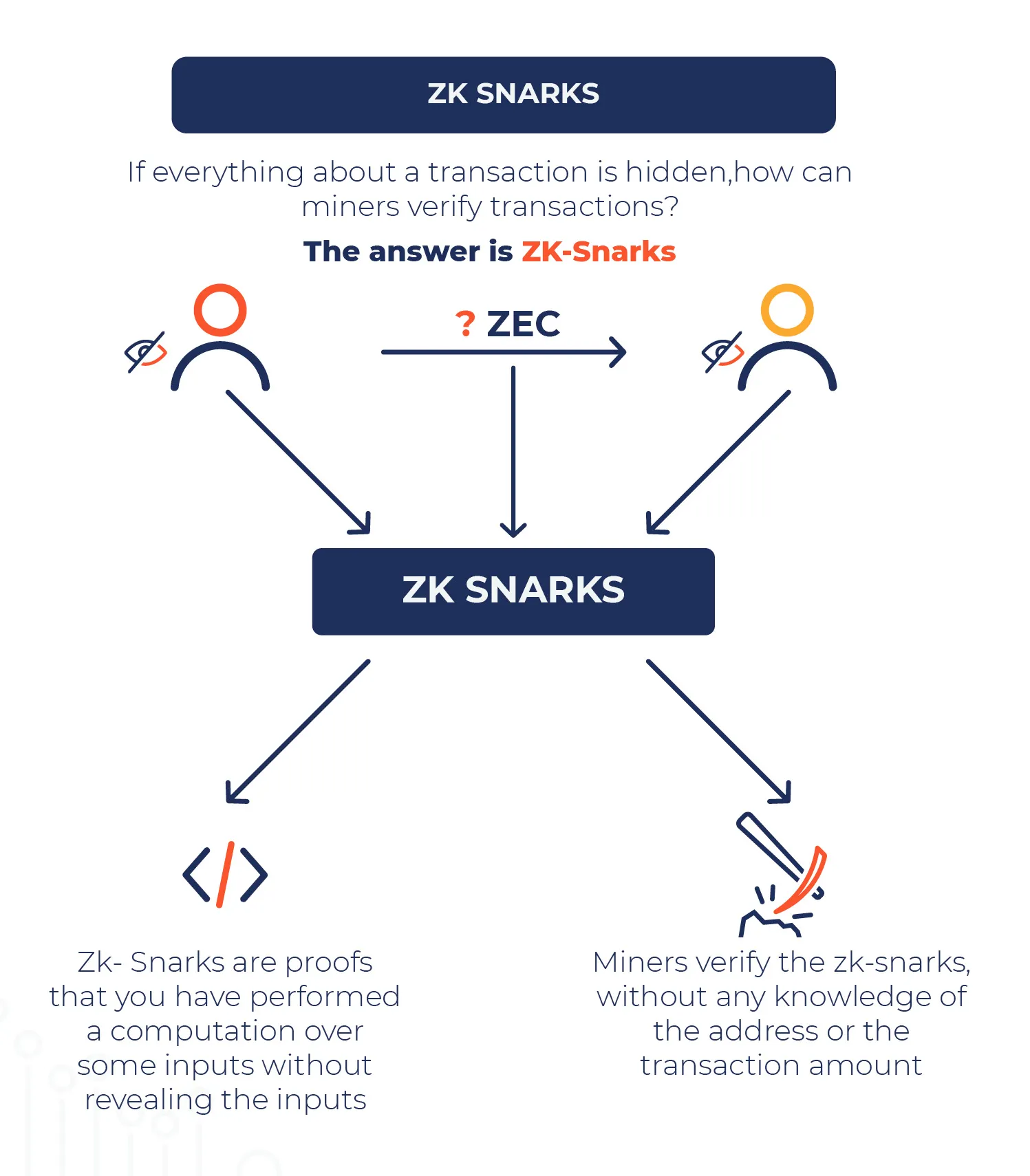

Zcash

Anonymous transfer, sender address, recipient address, and amount all invisible.

Transactions example:

Public:https://zcashblockexplorer.com/transactions/55f91f7480ec53a84908e72cc6158382f0fbd8784c9ea9279d2ca4fb75e5a610/raw

Shield:https://zcashblockexplorer.com/transactions/4db4c8d3197aa9d36fa3d8c58dbd1b0b5f4534fb6f08444f2fc3bd41ece48ed2/raw

Deshield:https://zcashblockexplorer.com/transactions/289da424637c66a7e343ea56bf6b7f149aa3315368c17977ec3e77dc6ce0bf7f/raw

Private:https://zcashblockexplorer.com/transactions/c083a6b24f074812c1656c672f4104f12ae42c4e7ea8885bcc1049adc6061c4f/raw

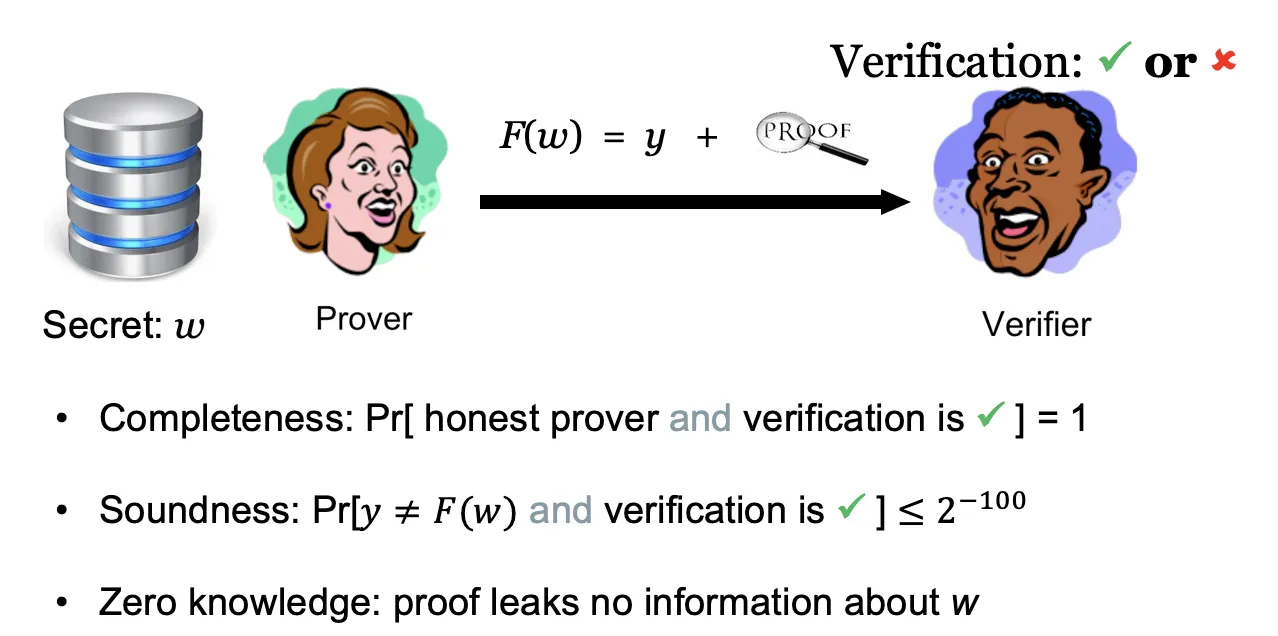

Zero knowledge proof

The verifier could confirm that the prover computes some functions ‘F(w) = y’ correctly even without knowing the input ‘w’.

$\text{PRF}^{\text{addr}}_{x}(z) := H\left( x \right\|00 \left\| z \right),\text{PRF}^{\text{sn}}_{x}(z) := H\left( 01 \right\| x \left\| z \right), \text{PRF}^{\text{pk}}_{x}(z) := H\left( 11 \right\| x \left\| z \right)$

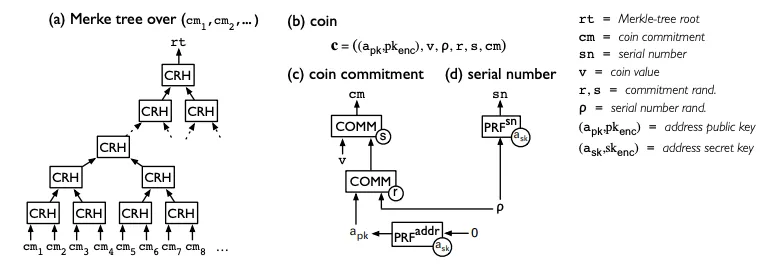

$k := \text{COMM}_{r}(a_{pk}\|\rho) \text{ as } H\left( r \| \left[ H(a_{pk}\|\rho )\right]_{128} \right)$

$\text{cm} := \text{COMM}_{s}(v\|k) \text{ as } H\left(k \| 0^{192} \| v \right)$

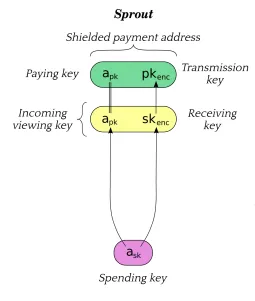

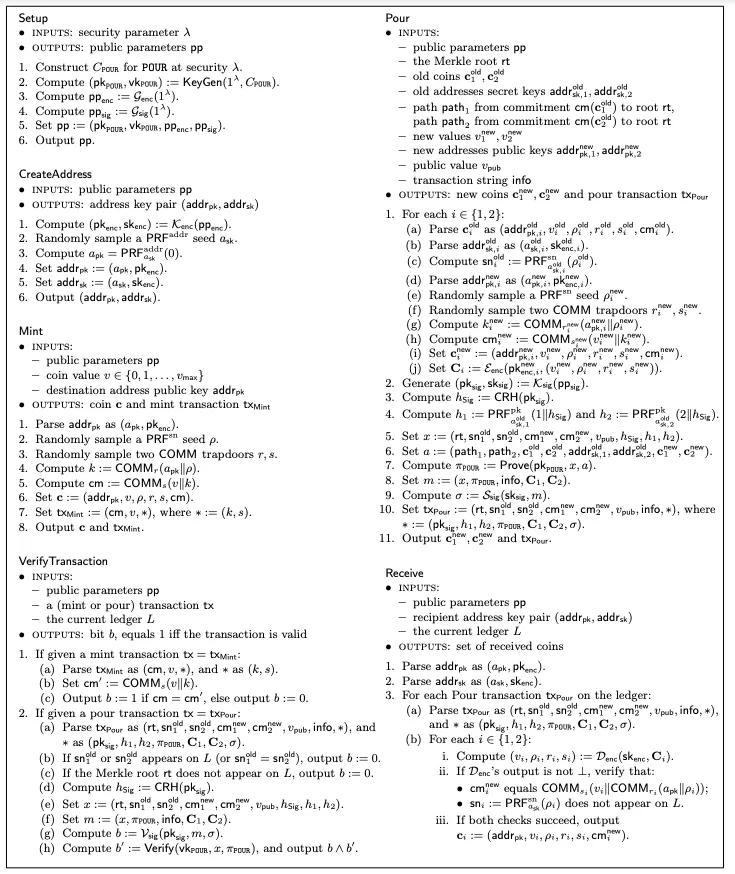

CreateAddress

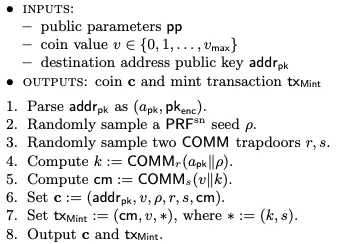

Mint

mint the public coin to a cm,the $k$ hide $a_{pk}$ , $\rho$ , so that we don’t know the owner of the coin. the $cm$ allow us to verify the value of the corresponding coin is v.

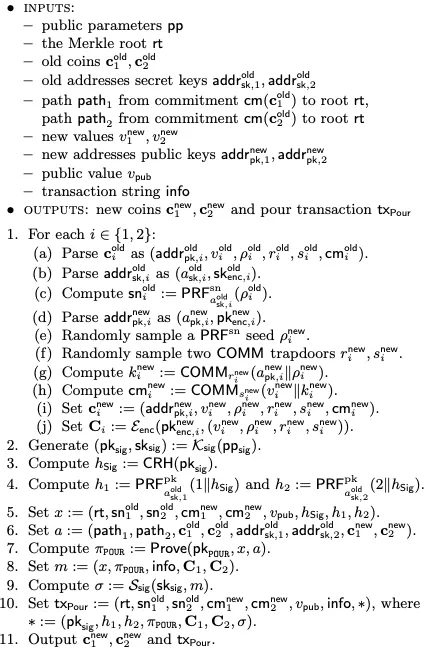

Pour

The new coin is tied to the $a_{pk}$ . Without the corresponding private key, it cannot be spent. $tx_{pour}$ also does not display how the value of new coin is allocated, nor does it display the corresponding public key.

Proof

instance: $x = \left( rt, sn^{old}_1, sn^{old}_2, cm^{new}_1, cm^{new}_2, v_{pub}, h_{sig}, h_1, h_2 \right)$

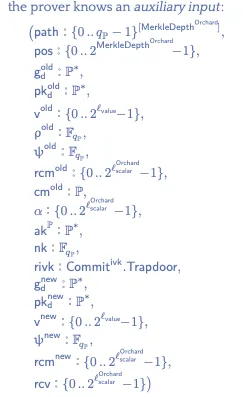

witness: $a = \left( \text{path}_1, \text{path}_2, c^{old}_1, c^{old}_2, \text{addr}^{old}_{sk,1}, \text{addr}^{old}_{sk,2}, c^{new}_1, c^{new}_2 \right)$

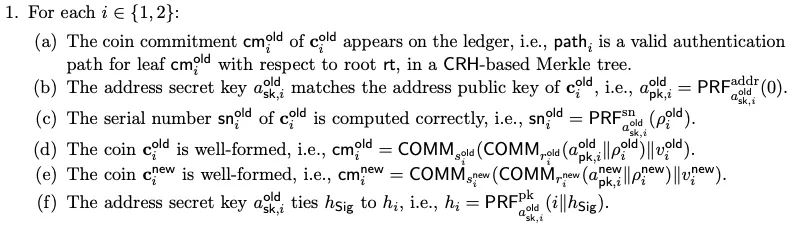

why need a? Ensure the correctness of cm and prevent the creation of non-existent cm.
why b? Ensure that the prover have the private key of the coin’s pk.
why c? Ensure that the serial number of the coin correct.
why d? Ensure that the coin information is legitimate and can be associated with cm.
why e? Same to d.
why f? Ensure that the $a_{pk}$ is indeed the signture public key and has not been changed.

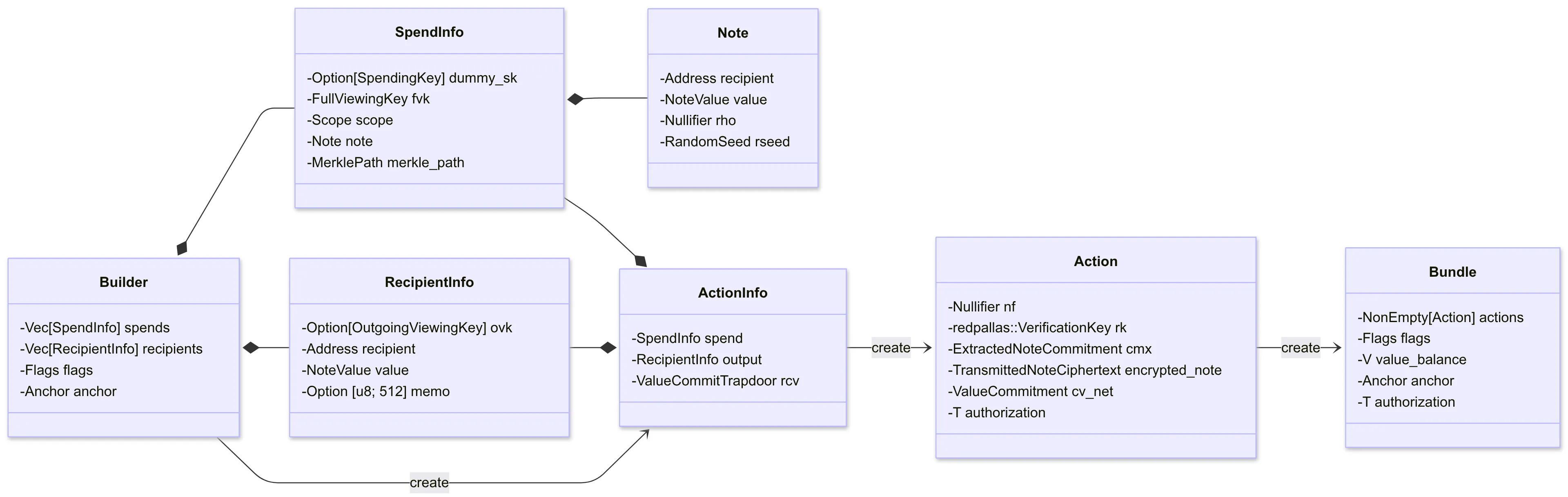

classDiagram
direction LR
    class Action {
        -Nullifier nf
        -redpallas::VerificationKey rk
        -ExtractedNoteCommitment cmx
        -TransmittedNoteCiphertext encrypted_note
        -ValueCommitment cv_net
        -T authorization
    }

    class Builder {
        -Vec[SpendInfo] spends
        -Vec[RecipientInfo] recipients
        -Flags flags
        -Anchor anchor
    }

    class Bundle {
        -NonEmpty[Action] actions
        -Flags flags
        -V value_balance
        -Anchor anchor
        -T authorization
    }

    class Note {
        -Address recipient
        -NoteValue value
        -Nullifier rho
        -RandomSeed rseed
    }

    class ActionInfo {
        -SpendInfo spend
        -RecipientInfo output
        -ValueCommitTrapdoor rcv
    }

    class RecipientInfo {
        -Option[OutgoingViewingKey] ovk
        -Address recipient
        -NoteValue value
        -Option [u8; 512] memo
    }

    class SpendInfo {
        -Option[SpendingKey] dummy_sk
        -FullViewingKey fvk
        -Scope scope
        -Note note
        -MerklePath merkle_path
    }

    Builder *-- RecipientInfo
    Builder *-- SpendInfo
    SpendInfo *-- Note

    Builder --> ActionInfo : create
    RecipientInfo --* ActionInfo
    SpendInfo --* ActionInfo

    ActionInfo --> Action : create
    Action --> Bundle : create

Transcation

let shielding_bundle: Bundle<_, i64> = {
        // Use the empty tree.
        let anchor = MerkleHashOrchard::empty_root(32.into()).into();

        let mut builder = Builder::new(Flags::from_parts(false, true), anchor);
        assert_eq!(
            builder.add_recipient(None, recipient, NoteValue::from_raw(5000), None),
            Ok(())
        );
        let unauthorized = builder.build(&mut rng).unwrap();
        let sighash = unauthorized.commitment().into();
        let proven = unauthorized.create_proof(&pk, &mut rng).unwrap();
        proven.apply_signatures(rng, sighash, &[]).unwrap()
    };

fn verify_bundle(bundle: &Bundle<Authorized, i64>, vk: &VerifyingKey) {
    assert!(matches!(bundle.verify_proof(vk), Ok(())));
    let sighash: [u8; 32] = bundle.commitment().into();
    let bvk = bundle.binding_validating_key();
    for action in bundle.actions() {
        assert_eq!(action.rk().verify(&sighash, action.authorization()), Ok(()));
    }
    assert_eq!(
        bvk.verify(&sighash, bundle.authorization().binding_signature()),
        Ok(())
    );
}

mermaid

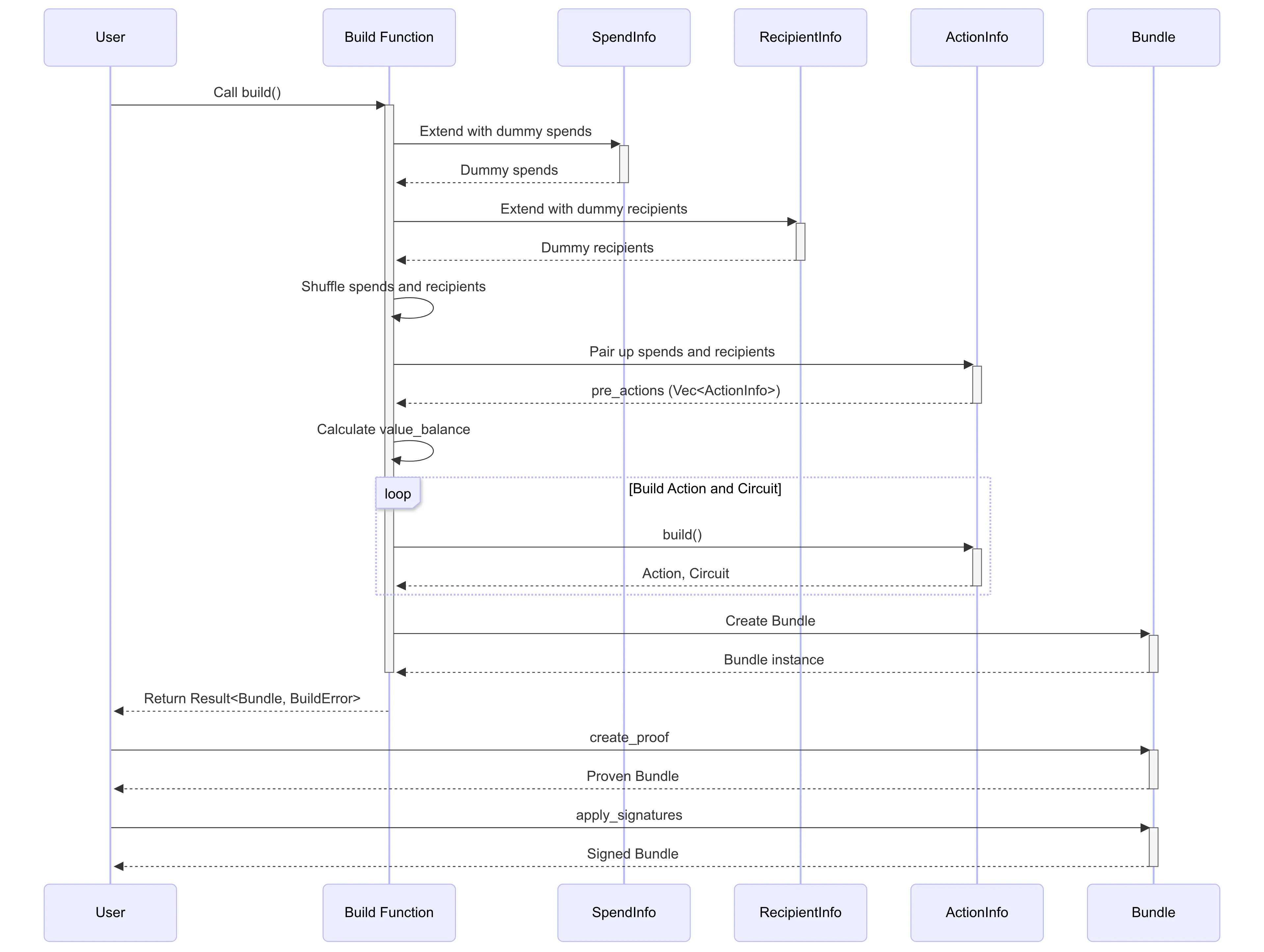

sequenceDiagram
    participant user as User
    participant BuildFn as Build Function
    participant SpendInfo as SpendInfo
    participant RecipientInfo as RecipientInfo
    participant ActionInfo as ActionInfo
    participant Bundle as Bundle

    user->>BuildFn: Call build()
    activate BuildFn

    BuildFn->>SpendInfo: Extend with dummy spends
    activate SpendInfo
    SpendInfo-->>BuildFn: Dummy spends
    deactivate SpendInfo

    BuildFn->>RecipientInfo: Extend with dummy recipients
    activate RecipientInfo
    RecipientInfo-->>BuildFn: Dummy recipients
    deactivate RecipientInfo

    BuildFn->>BuildFn: Shuffle spends and recipients
    BuildFn->>ActionInfo: Pair up spends and recipients
    activate ActionInfo
    ActionInfo-->>BuildFn: pre_actions (Vec<ActionInfo>)
    deactivate ActionInfo

    BuildFn->>BuildFn: Calculate value_balance

    loop Build Action and Circuit
        BuildFn->>ActionInfo: build()
        activate ActionInfo
        ActionInfo-->>BuildFn: Action, Circuit
        deactivate ActionInfo
    end

    BuildFn->>Bundle: Create Bundle
    activate Bundle
    Bundle-->>BuildFn: Bundle instance
    deactivate Bundle

    deactivate BuildFn
    BuildFn-->>user: Return Result<Bundle, BuildError>

    user->>Bundle: create_proof
    activate Bundle
    Bundle-->>user: Proven Bundle
    deactivate Bundle

    user->>Bundle: apply_signatures
    activate Bundle
    Bundle-->>user: Signed Bundle
    deactivate Bundle

Reference

https://eprint.iacr.org/2014/349.pdf

https://electriccoin.co/

https://zips.z.cash/protocol/protocol.pdf

https://github.com/zcash

https://github.com/zcash/orchard

https://zcash.github.io/orchard/index.html

https://zcash.github.io/halo2/index.html
